Outdoor Kitchen Design Guide: Layout, Materials, Workflow
Short answer: Design around three zones — prep, cook, serve — separated by 2-4 feet of counter each, in that order from left to right (or right to left if you're left-handed). Don't put the grill at one end with no landing space next to it. That single layout decision causes more cook-night frustration than any appliance choice.
Every outdoor kitchen we've helped build that worked great had one thing in common: the cook never had to walk more than two steps between prep, grill, and plating. Every kitchen that got rebuilt within three years had a layout problem that no upgrade could fix.
The three-zone workflow
This is the framework professional kitchens use, scaled down for residential outdoor:
Zone 1 — Prep (left): Cutting board landing, sink (if you have one), refrigerator door swing. Need 30-48 inches of counter. This is where raw protein goes when it comes out of the fridge.
Zone 2 — Cook (center): Grill, side burner, smoker. Need 18-24 inches of counter on EACH side of the grill — landing space for the prep platter coming in and the cooked platter going out. Skip these and you're shuttling plates to a chair or the deck floor.
Zone 3 — Serve (right): Cooked-food landing, plating area, serving utensils, condiments. 24-36 inches. Direct path from grill to here. Ideally adjacent to the dining table.
Bonus zone 4 — Drink station (separate from cook line): refrigerator + ice maker + glass storage. Doesn't need to be next to the grill. Often better as a separate island so guests don't crowd the cook.
Common layout patterns
Straight line (8-12 ft): Prep / cook / serve in a row. Cheapest to build, easiest to roof. Works for 80% of homes. Downside: limited storage capacity below counter. Best when wall is on one side.

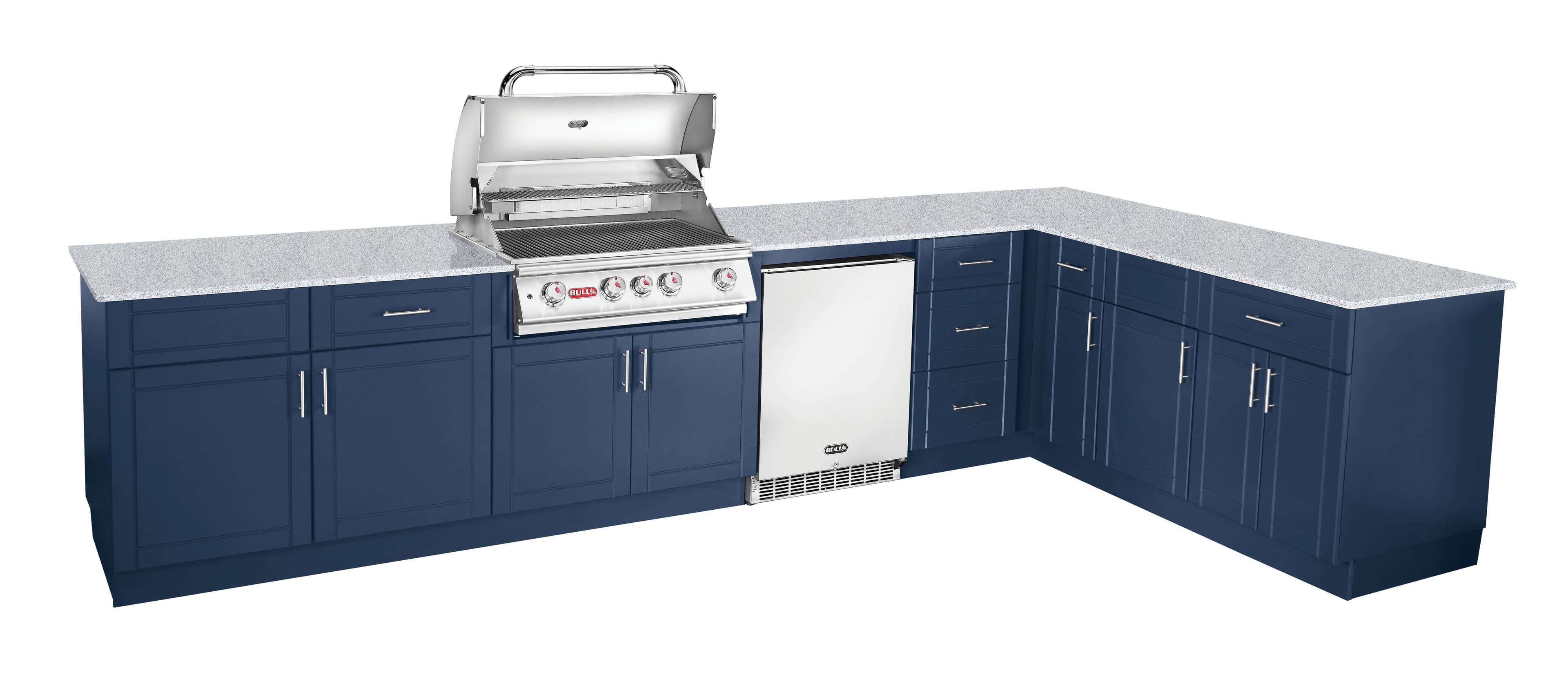

L-shape: Prep on one leg, cook + serve on the other. Adds 30-50% counter capacity over a straight line in the same footprint. Best when you have a corner of the patio to work with.
U-shape (only for larger patios, 14+ ft): Prep, cook, and serve each on their own wall. Most counter, most storage, but uses 200+ sq ft of patio. Wraps the cook in, which is great for hosting (the cook can talk to guests on the other side of the bar).
Island (free-standing): Two-sided — grill faces one way, prep faces the other. Excellent when you want the cook facing guests. Needs 4 feet of clearance on all sides minimum. Costs more in plumbing/gas runs.
Dimensions that actually matter
Counter depth: 30 inches standard, 36 inches better if you're storing large platters or doing serious prep. Don't go less than 25 inches.
Counter height: 36 inches matches indoor kitchens (works for 5'6"-6'2" cooks). Drop to 34 inches if the primary cook is shorter, raise to 38 inches if taller.
Grill clearance from combustibles: Refer to the manufacturer spec — Bull, DCS, and Hestan all publish minimum clearances. Typical: 12 inches from rear wall, 6 inches from sides, 30 inches above to combustibles (longer for wood pergolas).
Walking aisle behind cook: 42 inches minimum. 48-54 inches if two people will be working back-to-back.
Roof clearance overhead: Confirm with grill manufacturer; most need 30-36 inches clear above the hood plus a vent for combustion products if fully enclosed.
Materials: what survives outdoors
Counter tops:
Concrete (poured or precast GFRC) — most popular, durable, multiple colors. Seal annually. Cracks if not reinforced — get one with rebar or fiber.
Granite — premium, no maintenance, expensive ($60-120/sq ft installed). The forever choice.
Porcelain slabs — newer option, lighter than granite, won't fade in UV. $40-90/sq ft.
Quartz — DO NOT USE outdoors. UV yellows the resin binder within 18-24 months.
Tile — works but grout fails fast. Plan to re-seal every 1-2 years or budget for re-grouting.
Cabinets/structure:
Steel frame with stucco or stone veneer (best — fire-resistant, weatherproof)
CMU block + veneer (workhorse, slightly less custom-looking)
Powder-coated steel cabinets (Bull, DCS sell these — quickest install, premium look)
Wood frame — only if you're building under cover and willing to refinish every 3-5 years
Doors/drawers:
304 stainless steel hinges and door fronts. Anything less rusts. Refer to the same grade discussion from our 304 vs 430 piece.
Things people skip and regret
Lighting. You will use this kitchen after dark. LED strips under counter + a directional light over the grill changes the experience. Budget $300-800 in lights.
Gas line capacity. Adding 3-4 appliances (grill 90k + side burner 18k + smoker 30k) can exceed your meter. Plan for utility upgrade if total exceeds ~140k BTU on a typical residential meter.
Drainage. If you have a sink, plumb it to a drain — not a 5-gallon bucket. The bucket gets forgotten. The smell becomes a problem.
Electrical for accessories. GFCI outlet within 6 feet of the cook line for rotisserie motor, blender, lights. Skipping this means extension cords running across the patio forever.
Storage. Outdoor kitchens generate utensils, towels, sauces, fuel (for charcoal/wood grills), grill brushes. Build in 20-30 cu ft of storage below the counter. You will use all of it.
Common mistakes (and how to avoid them)
Grill at one end with zero landing space → your cooked platter has nowhere to go. Fix: 18-24 inches each side of grill.
Sink too far from grill → you walk to wash hands, lose 30 seconds every time. Fix: sink in prep zone, ≤6 feet from cook.
No shade overhead → cooking in 95°F summer sun is brutal. Fix: pergola, sail shade, or actual roof above the cook line.
Refrigerator that opens TOWARD the grill aisle → blocks the cook every time someone grabs a drink. Fix: hinge it away from the workflow.
No protected outlet for the rotisserie motor → guess what won't be used.
Budget reality
Rough cost ranges based on our customer installs over the last 3 years:
$8,000-15,000: 8-foot straight line, single grill, basic counter, no plumbing
$15,000-30,000: 10-12 foot L-shape, premium grill + side burner, granite or GFRC counter, partial roof
$30,000-60,000: 14+ foot full kitchen, Bull/DCS/Hestan grill + side burner + refrigerator + sink, premium materials, full pergola
$60,000-150,000+: showpiece installs with multiple cooking stations, pizza oven, bar seating, full power + gas + plumbing
Related reading
Pair with: Outdoor Kitchen Mistakes to Avoid (the after-build regret list), Built-In Grill Installation Guide (the cutout + clearance details), Side Burner Buying Guide (specifically for the side-burner appliance choice).
